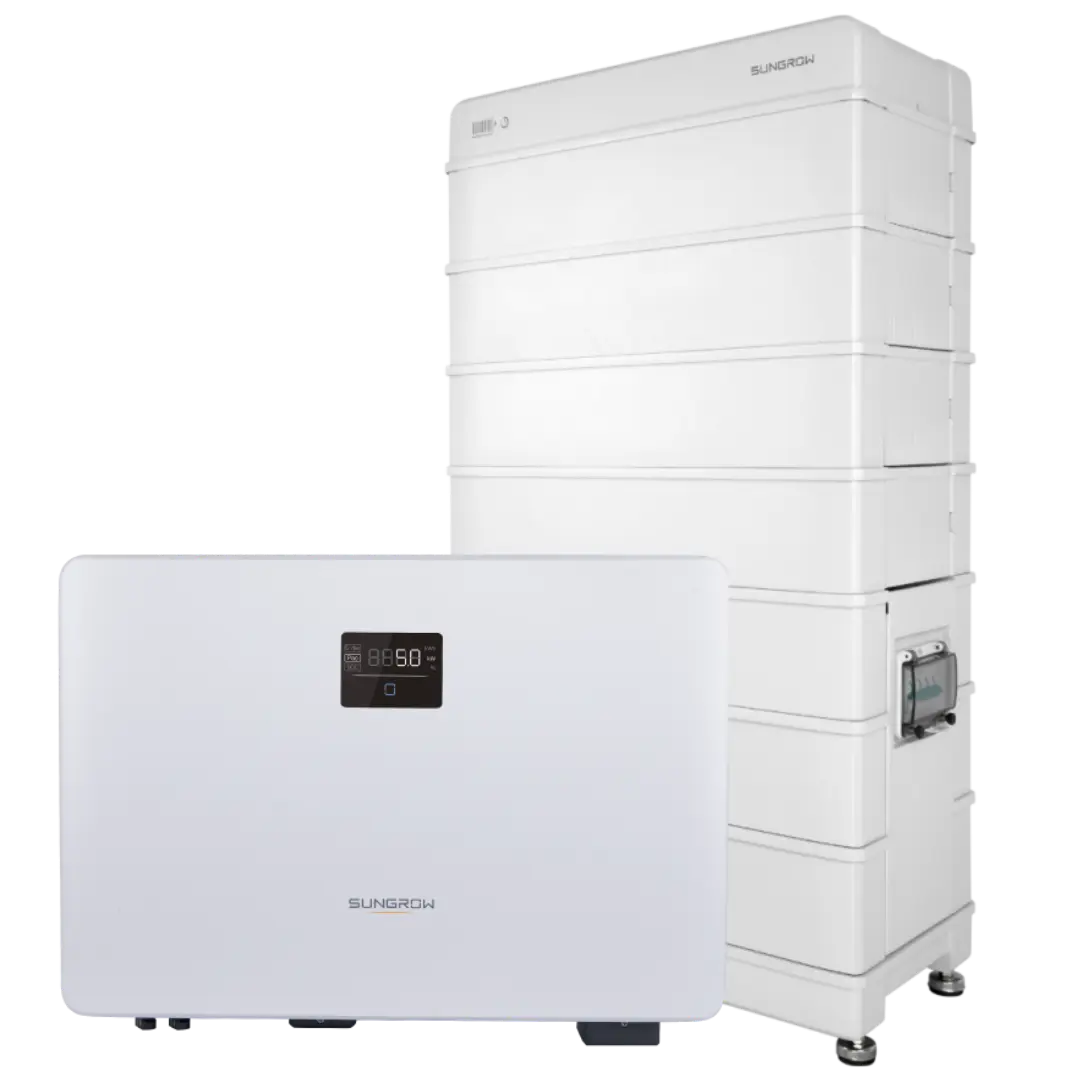

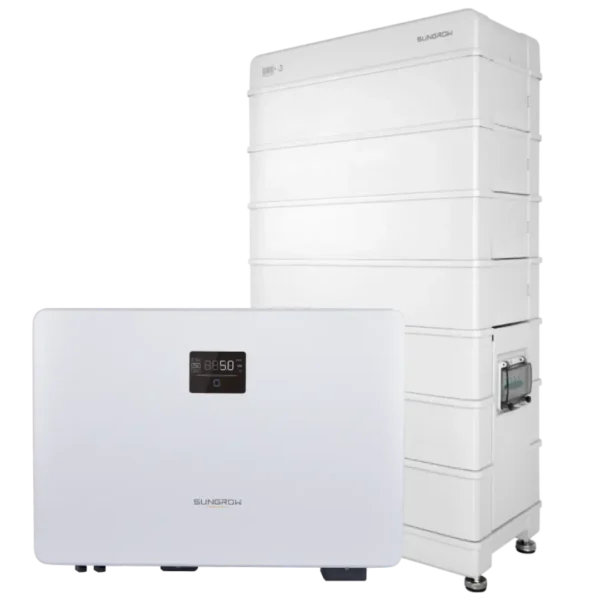

Sungrow 22.4kWh Battery
The Sungrow SBR 22.4 kWh Battery is a high-capacity energy storage solution designed for residential and commercial applications.
Modular Design: The system supports 3 to 8 modules per unit, allowing for flexibility in scaling the storage capacity up to 100 kWh by connecting multiple units in parallel.
Plug and Play Installation: Designed for easy installation with a wiring-less connection between modules, enabling a single person to set it up without professional assistance.
Safety Features: Utilizes lithium iron phosphate (LiFePO4) technology, known for its stability and safety, along with multi-stage protection designs and various safety certifications.
Technical Specifications of Sungrow 22.4kWh Battery
Total Capacity 22.4 kWh
Module Capacity 3.2 kWh per module
Rated Voltage 448 V
Operating Voltage Range 350 V – 511 V
Continuous Charge/Discharge Current 30 A
Peak Charge/Discharge Current 42 A (pulse for 10 seconds)
Dimensions (W x H x D) 625 mm x 1065 mm x 330 mm
Weight 246 kg
Protection Rating IP55
Warranty 10 years
Applications
The Sungrow SBR 22.4 kWh Battery is ideal for:Residential Use: Storing solar energy for home use, reducing reliance on the grid and lowering electricity bills.
Commercial Applications: Providing backup power and managing energy costs in commercial settings.
Off-Grid Systems: Supporting off-grid solar systems by storing energy for use when sunlight is not available.
